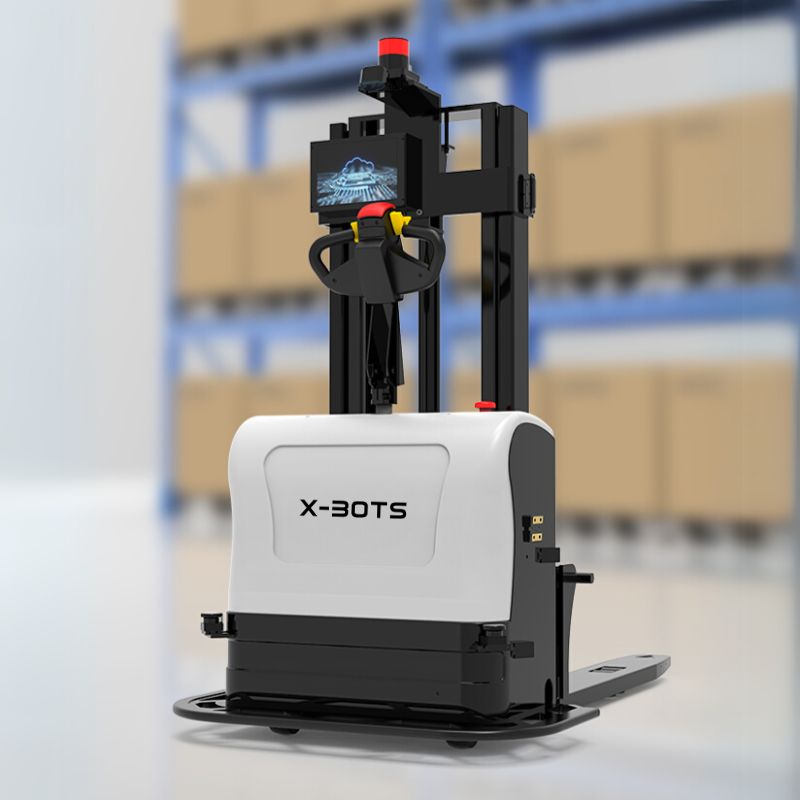

Rhinoceros

Autonomous
Forklift trucks



Real Laser SLAM without coding

No need for reflectors, magnetic stripes, no need for QR codes, pallet identification, accurate forklift trucks
6
7
8
9
10
11

1.5T Large Payload

Laser SLAM Navigation

Intelligent Obstacle Avoidance

Automatic Charging

40,000 ㎡ Of Navigational Mapping

Autonomous Dispatch System

2.5m Jacking Height

60m Single-line Laser Radar

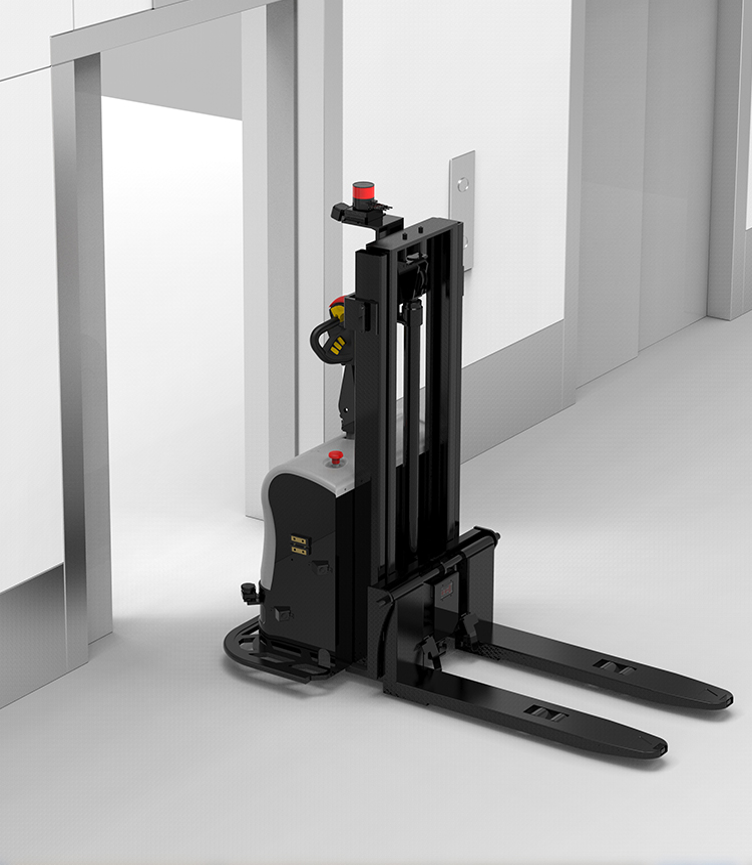

Can go up and down the elevator Breaking space limitation

Easy access to elevators for cross-floor operation



40,000 ㎡ Of Navigational Mapping

60m single line LiDAR, 1.6m narrow lane access, meets the needs of large area and complex environment usage.

Contact Us

    PROPERTIES

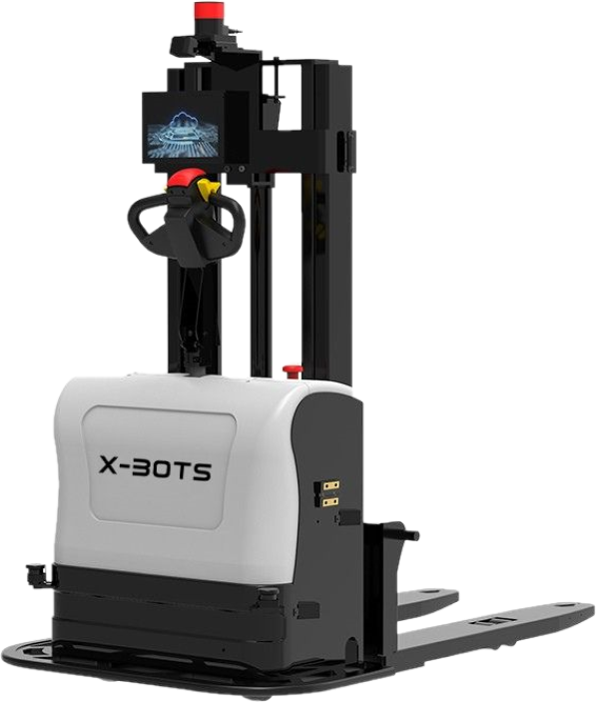

    Model: RBOT30F
    Dimension & General Spec:
    • Service brake | electronic brake
    • Driver ear noise | < 70dB(A)
    • Operation type | Walking &Automatic
    • Fork lifting height | 2,585mm
    • Minimum fork height | 85mm
    • Maximum height of gantry during operation | 3,050mm
    Payload:
    • Maximum load | 1,500kg
    • Load center distance | 500mm
    • Vehicle weight (including battery) | 910kg
    • Body size | 1950mm(Length) 950mm (Width) 1900mm(Height)
    • Fork size | 1150mm/160mm/60mm
    • Fork outer width | 685mm
    Tire:
    • Ground clearance at center of wheelbase | 30mm
    • Turning radius | 1,500mm
    • Tire type (front/rear/additional) | Polyurethane Wheel
    • Tire size,front | 210mm×70mm
    • Tire size,rear | 80mm×70mm
    • Tire size,additional wheels | 100mm×50mm
    • Number of wheels front/rear (x=drive wheel) | 1/2/4
    • front wheelbase | 866mm
    • Rear wheelbase | 525mm
    Produce:
    • Travel speed Full load | 4km/h
    • Travel speed No load | 5.6km/h
    • Descent speed Full/No load | 101m/h
    • Climbing speed 8% of Full Load Travel Speed
    • Climbing speed 15% of No Load Travel Speed
    Walkway wide:
    • pallet 800*1200 (1200 placed along the forks) | 2,100mm
    • pallet 1000*1200 (1200 across fork placement) | 2,200mm
    Power Supply:
    • Battery weight | 104kg(with total 26 unit of Battery)
    • Lifting motor power | 2.2kw
    • Drive motor power | 0.8kw
    • Battery voltage | 48v
    • Charging method | Automatic charging
